APPLICATION AND POSITIONING

The Zenride Optimizer is installed in the TFV 150 Mono refrigeration unit's fuel supply on the low-pressure side. The unit is positioned after the fuel filter and before the low-pressure pump supplying the Mitsubishi diesel engine.

FUEL FLOW DIRECTION
Diesel tank > Fuel filter > Zenride Optimizer > Low-pressure pump/engine

CORRECT INSTALLATION

• On the low-pressure side after the fuel filter
• Horizontal and secured in a separate bracket
• Flow direction towards the engine

DO NOT INSTALL

• On the high-pressure side of the fuel system
• In the fuel return line
• Suspended directly from the fuel hoses

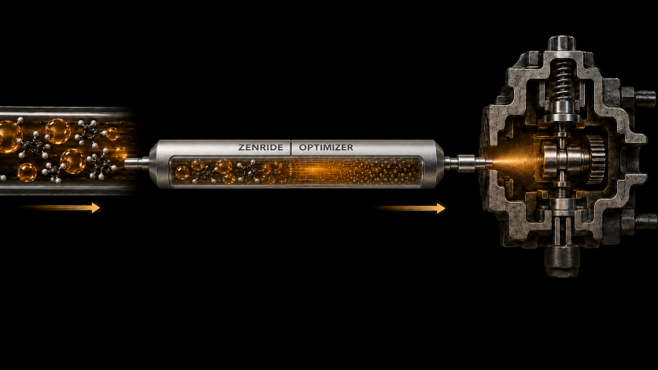

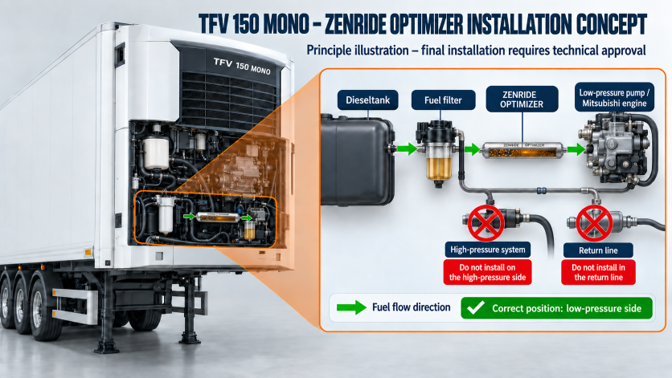

IMPORTANT: The illustration shows the installation principle. Final positioning, pressure, hoses and fittings must be approved for the specific unit.

INSTALLATION PROCEDURE

• Identify the refrigeration unit's diesel tank, pre-filter, main filter and low-pressure pump.
• Confirm fuel pressure, hose dimensions, engine variant and suitable connections.
• Install the Optimizer after the fuel filter, with flow directed towards the engine.
• Secure the unit in a separate bracket and protect it from vibration, heat and moving parts.
• Use diesel-resistant hoses, fittings and seals approved for the temperature and feed pressure.
• Bleed the system, check for leaks and test-run the refrigeration unit.
• Check fuel pressure, stable engine operation and any fault codes after the test run.

TECHNICAL CONFIRMATION BEFORE INSTALLATION

• The specific TFV 150 model and Mitsubishi engine variant must be identified.
• The installation must not alter or limit the refrigeration unit's original safety functions.
• Manufacturer warranty and service requirements, including any written approval, must be clarified.

STATUS: PRINCIPLE DATASHEET
This document is not a model-specific workshop drawing or manufacturer approval.
